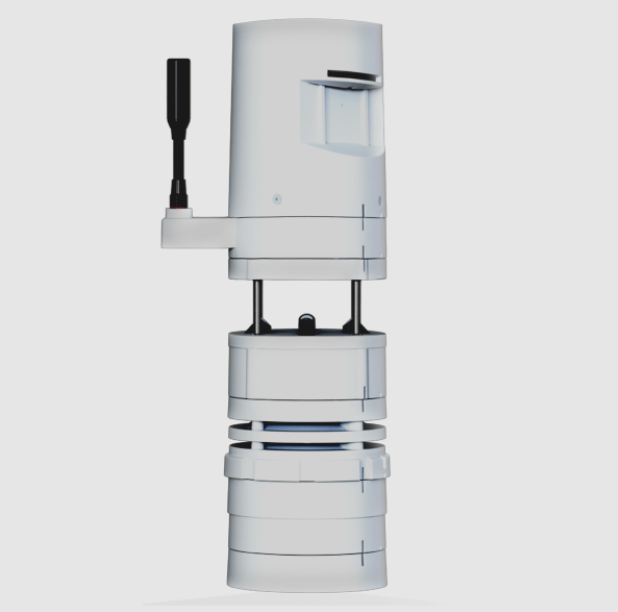

Integrated Weather Observation System (IWOS)

Price :

Description

The Integrated Weather Observation System (IWOS) the compact, wireless, rugged weather station that can be customized to any customers’ specific needs. This system can replace legacy weather stations that require hardline power or permanent installation. It integrates up to eight environmental sensing modules with satellite or cellular communications in a package that fits into a single case and weighs less than 25 lb. In addition to its portability, performance, and professional-grade construction, the modular design of the IWOS lends itself to higher accuracy, higher availability, and a lower lifecycle cost.

The environmental sensing modules offer a complete range of weather sensing parameters that include temperature, pressure, humidity, wind speed and direction, lightning distance and frequency, and cloud layers up to 25,000 ft. The modular structure also enables quick replacement and allows room for future growth and advancements.

The IWOS can deliver environmental conditions in almost real time. It can be powered via an AC or solar power system, as well as transmit data via cellular, wire, radio, or Iridium satellite communications. It is also capable of reporting conditions autonomously for unmanned or remote operations. With its modular, portable, and autonomous features, the IWOS is the ideal replacement for automatic weather stations and their peripherals.

additional info



Temperature
  • Range: -40 to 60°C (-40 to 140°F)
  • Resolution: 0.1°C
  • Accuracy: ± 0.5°C
Barometric Pressure
  • Range: 600-1110 mb
  • Resolution: 0.01 mb
  • Accuracy: ± 0.5 mb
High-Accuracy Pressure Module
  • Range: 500-1110 mb
  • Resolution: 0.01 mb
  • Accuracy: ± 0.2 mb
Humidity
  • Range: 0 to 100%
  • Resolution: 1%
  • Accuracy: ± 2%
Precipitation Accumulation, Type & Rate
  • Range: 0 to 152 mm/hr (0 to 6 in/hr)
  • Resolution: 0.25 mm/hr (.01 in/hr)
  • Accuracy: ± 2.5 mm/hr (0.1 in/hr) or 10% (whichever is greater)
Cloud Ceiling
  • Range: Surface to 25,000 ft (Surface to 7620 m)
  • Resolution: 33 ft (10 m)
  • Accuracy: ± 100 ft or 10% (whichever is greater)
Wind Speed
  • Range: 0 to 46.3 m/s (0 to 90 knots)
  • Resolution: 0.5 m/s (1 knot)
  • Accuracy: ± 3%
Wind Direction
  • Range: 0-359°
  • Resolution: 1°
  • Accuracy: ± 4°
Visibility
  • Range: 10-10,000 m (0 to 6.2 mi)
  • Resolution: 100 meters (0.06 mi)
  • Accuracy: ±10%
Lightning Distance & Frequency
  • Range: 0 to 40 km (0 to 25 mi)
  • Resolution: 3.2 km (2 mi)
  • Accuracy: Varies
360° Camera Module
  • 4 wide-angle color images with 320 x 240 resolution
